OUTDOOR FIXED

Download catalogue

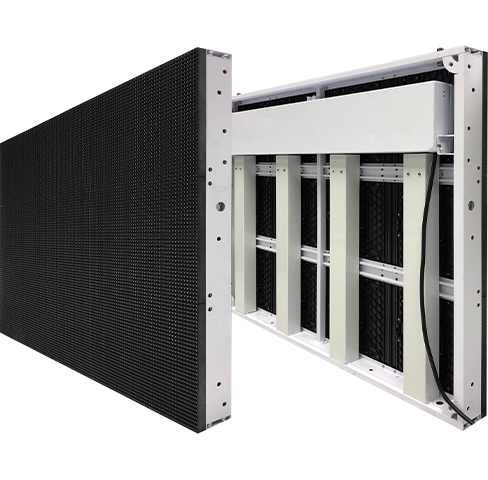

  • SOD Series

    Outdoor LED Display

    Key Features
    • Double waterproof design
    • P to P Parallel Connection
    • Front and Rear Maintenance
    • No Fan
    • No Hub board
    • Aluminum Cabinet design
    Specifications
    Model
    SD4
    SD6
    SD10
    SD16
    Pixel Pitch(mm)
    4.44
    6.66
    10
    16
    Cabinet Dimensions(WxHxD)(mm)
    960X960X96
    1280X960X96
    1280X960X96
    1280X960X96
    Cabinet Resolution[WXH](pixels)
    216X216
    192X144
    128X96
    80X60
    Module Size[WXH](mm)
    320X320
    320X320
    320X320
    320X320
    Brightness(nit)
    5,500
    6,500
    8,000
    10,000
    Refresh(Hz)
    1,920
    1,920
    1,920
    1,920
    Viewing Angle(H/V) (˚)
    140/80
    140/105
    140/120
    120/60
    IP Rating(Front/Rear)
    IP65/IP54
    IP65/IP54
    IP65/IP54
    IP65/IP54
    Power Consumption(Max./Avg.)(W/㎡)
    650/216
    750/250
    750/250
    360/120

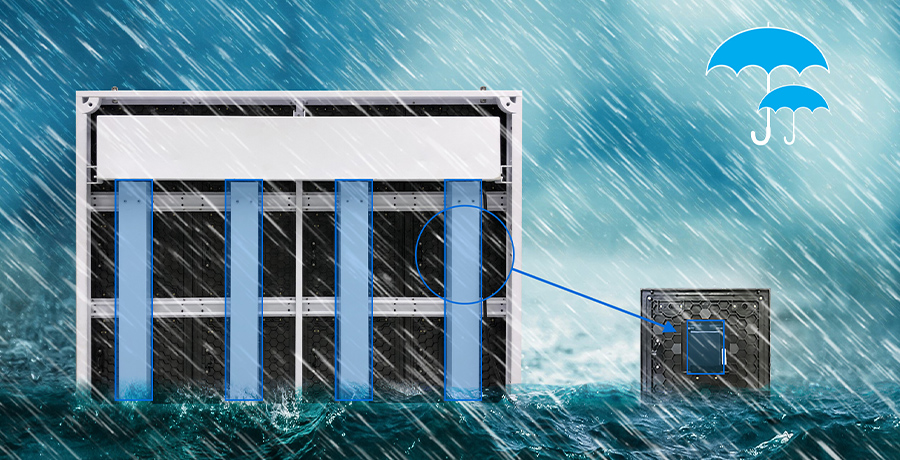

    Double waterproof design

    In addition to the front-side module, the back-side cable and board, too, offer water-proof features.

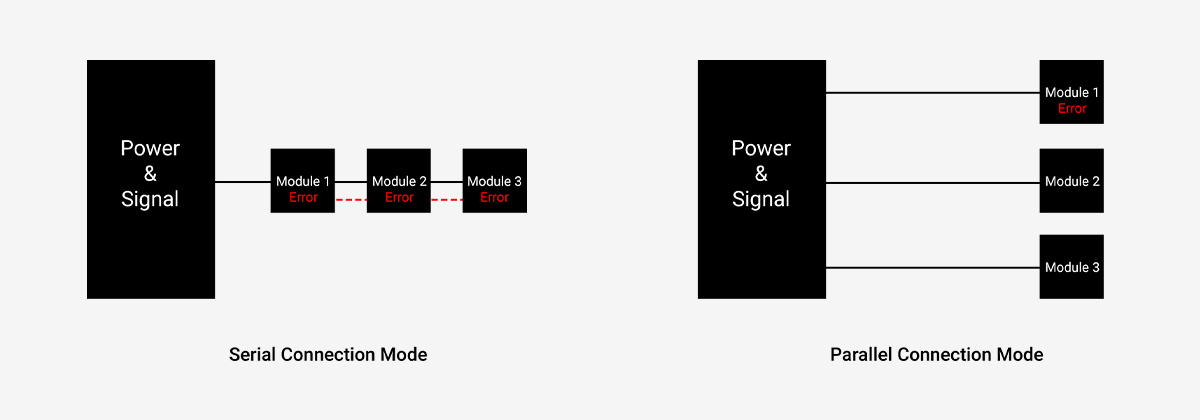

    P to P Parallel Connection

    As the power and signal have a parallel connection, even if one module breaks down, it does not affect the function of other modules.

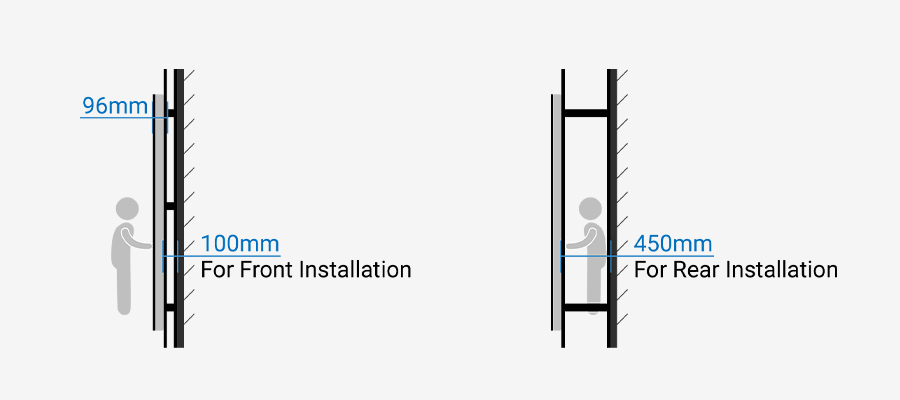

    Front and Rear Maintenance

    Maintenance can be carried out on the front and back side simultaneously.
    For maintenance on the front side: A minimum of 100mm of distance from the wall is needed / For maintenance on the back side: A minimum of 450mm of distance from the wall is needed

  • SCOD Series

    Outdoor Custom LED Display

    Key Features
    • Waterproof & Dustproof design
    • High Efficiency Cooling
    • Higher Brightness
    Specifications
    Model
    SCOD-4
    SCOD-5
    SCOD-6
    SCOD-8
    SCOD-10
    Pixel Pitch(mm)
    4
    5
    6
    8
    10
    Cabinet Dimensions[WxHxD](mm)
    1024X768X150
    960X960X150/
    1280X960X150
    960X960X150
    1024X1024X150
    960X960X150/
    1280X960X150
    Cabinet Resolution[WXH](pixels)
    256X192
    192X192/256X192
    160X160
    128X128
    96X96/128X96
    Module Size[WXH](mm)
    256X128
    320X160
    192X192
    256X128
    320X160
    Brightness(nits)
    5,000
    5,000
    5,000
    5,000
    7,000
    Refresh(Hz)
    1,920
    1,920
    1,920
    1,920
    1,920
    Viewing Angle[H/V](˚)
    140/120
    140/120
    140/120
    140/120
    140/120
    IP Rating(Front/Rear)
    IP65/IP54
    IP65/IP54
    IP65/IP54
    IP65/IP54
    IP65/IP54
    Power Consumption[Max./Avg.](W/㎡)
    750/250
    750/250
    750/250
    750/250
    750/250
    Waterproof & Dustproof design

    It is a product with a high level of waterproof and dustproof design
    for various outdoor environments.

    High Efficiency Cooling

    4 Cooling Aero Fans keep the internal temperature low Increases the stability and
    longevity of LED and internal components.

    Higher Brightness

    Since the brightness of the LED screen itself is high, there is no effect even if it is directly
    exposed to bright sunlight, and clear display can be displayed.

    * This product is made-to-order, and the case structure may change depending on the design method.
