MEDIA FACADE

Download catalogue
  • SGL Series

    High quality transparent LED film

    Key Features
    • Nano Wire Technology
    • Slim & Light Weight
    • Easy Installation
    • Anti - UV Soft & Creative Design
    Specifications
    Model
    SG31
    SG62
    Pixel Pitch(mm)
    31.25
    62.5
    Panel Size[WxHxD](mm)
    500X500X1.2/Customer order
    500X500X1.2/Customer order
    Panel Resolution[W X H](pixels)
    16X16
    8X8
    Panel Material
    Anti UV PET + AL
    Anti UV PET + AL
    Brightness(nit)
    2,000~4,000 Adjustable
    2,000~4,000 Adjustable
    Transparency(%)
    ≥92
    ≥92
    Viewing Angle[H/V](˚)
    140/140
    140/140
    Power Consumption[Max./Avg.](W/㎡)
    300/100
    300/100

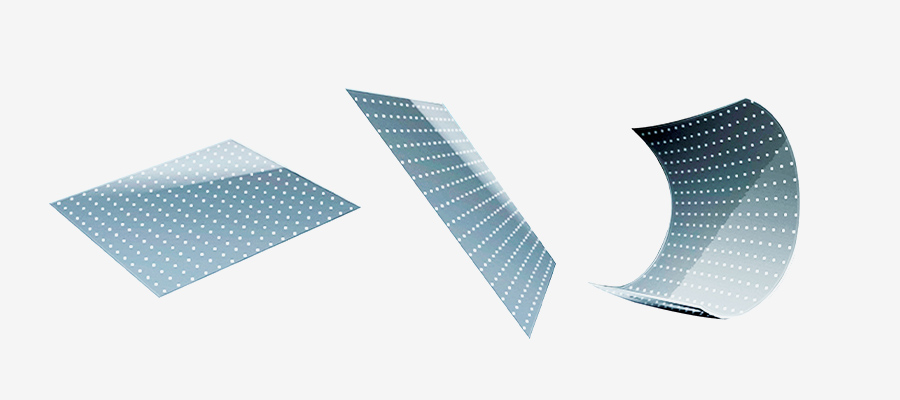

    Nano Wire Technology

    This is a flexible type LED display product with transmittance of over 95% and invisible wire patterns.

    Slim & Light Weight

    Ultra slim and ultra light with thickness of 1.2mm and weight of 0.3kg.

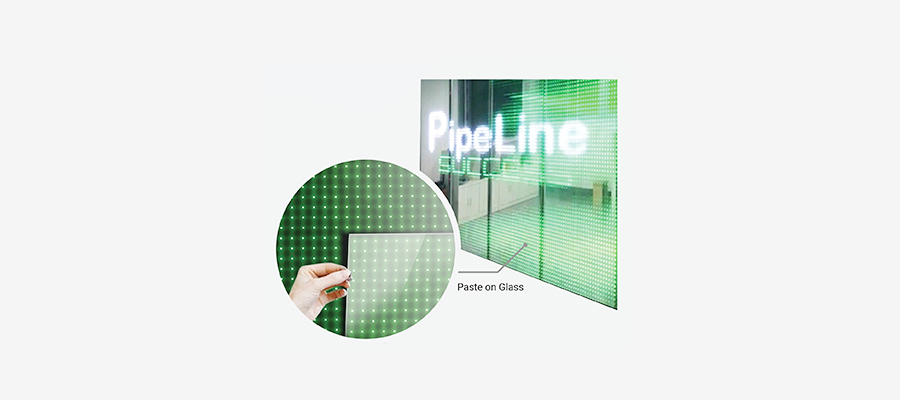

    Easy Installation

    The product provides easy installation by adhering directly on glass pane,

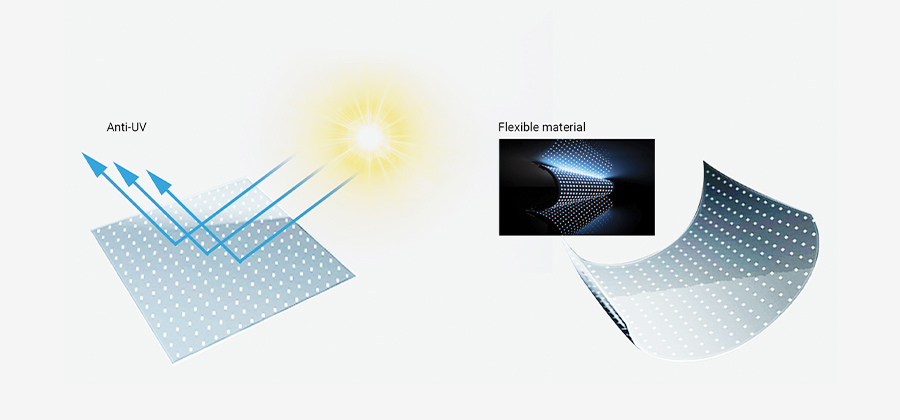

    Anti - UV Soft & Creative Design

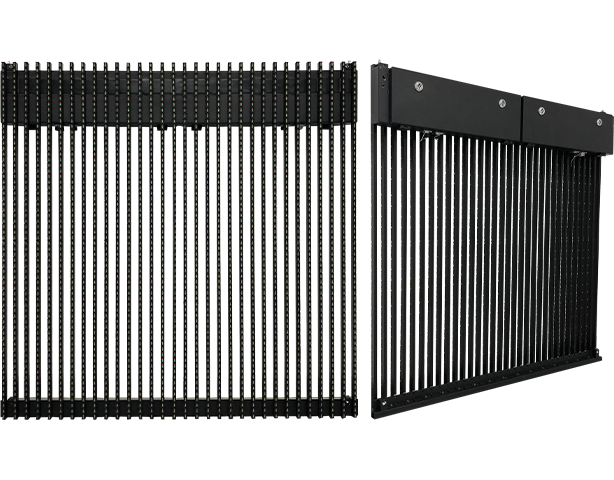

  • ROD-1 Series

    High Brightness Outdoor Media Facade

    Key Features
    • High Brightness DIP LED
    • High Protection Grade
    • Front and Rear Maintenance Available
    Specifications
    Model
    RS31
    RS60
    Pixel Pitch(mm)
    H31/V15
    H60/V25
    Panel Size[WxHxD](mm)
    1,000X1,000X90
    1,200X2,400X148
    Panel Resolution[W X H](pixels)
    32X64
    20X96
    Panel Material
    Aluminum
    Aluminum
    Brightness(nit)
    8,000
    8,000
    Transparency(%)
    ≥68
    ≥68
    Refresh(Hz)
    1920
    3840
    IP Rating(Front/Rear)
    IP65/IP54
    IP65/IP54
    Power Consumption[Max./Avg.](W/㎡)
    320/107
    245/83

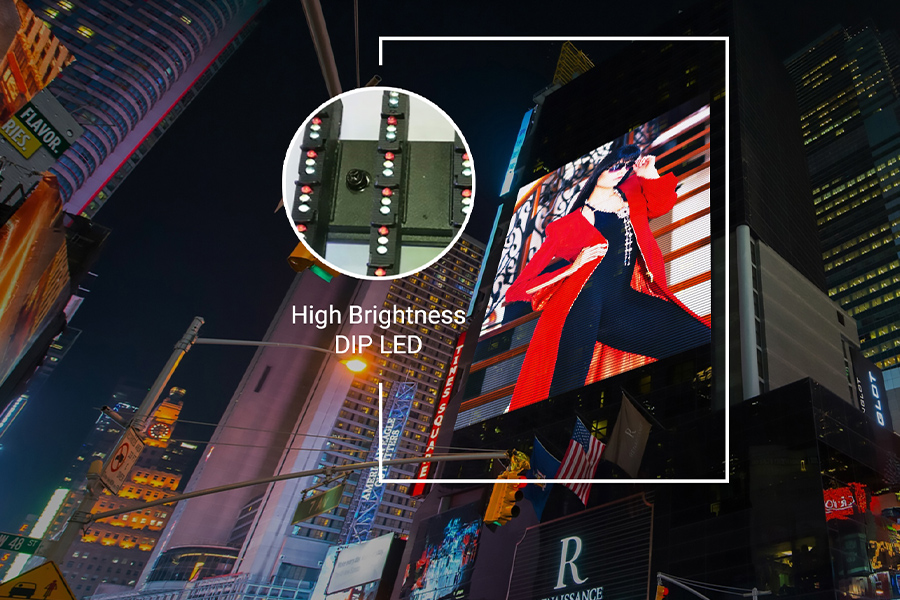

    High Brightness DIP LED

    This has the highest brightness among LED Media Façade product group.

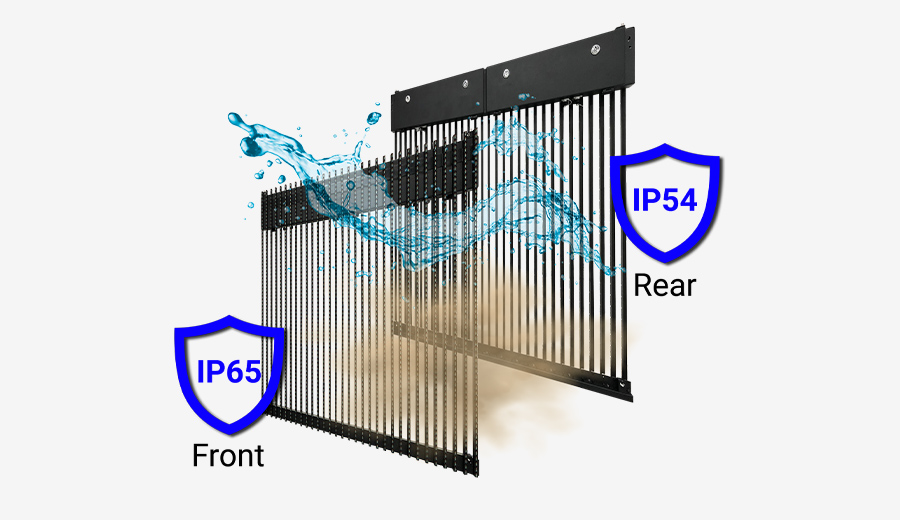

    High Protection Grade

    This is an outdoor installation product with high waterproof and dustproof ratings.

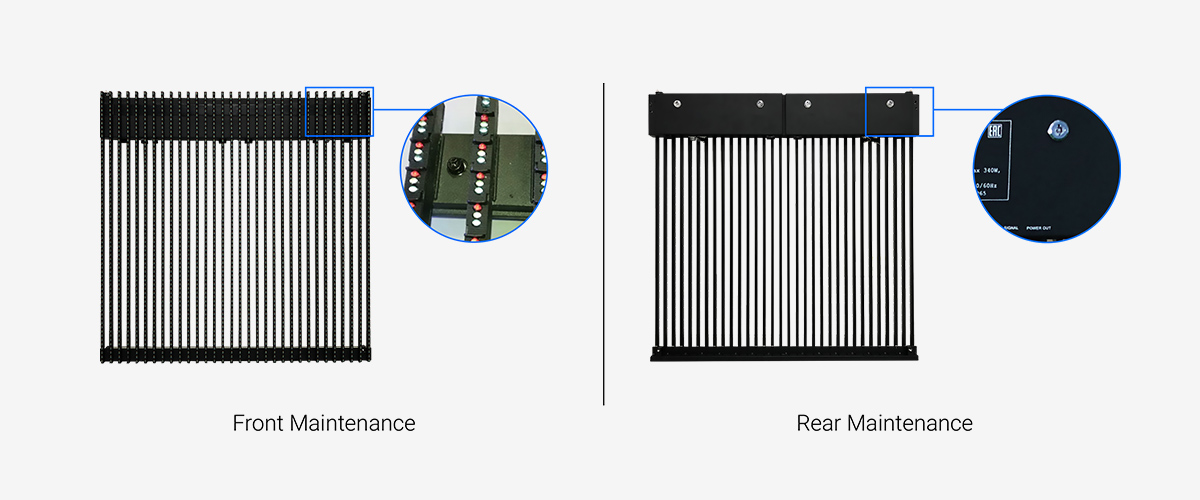

    Front and Rear Maintenance Available

    Availability of front and rear maintenance saves maintenance time and expenses.

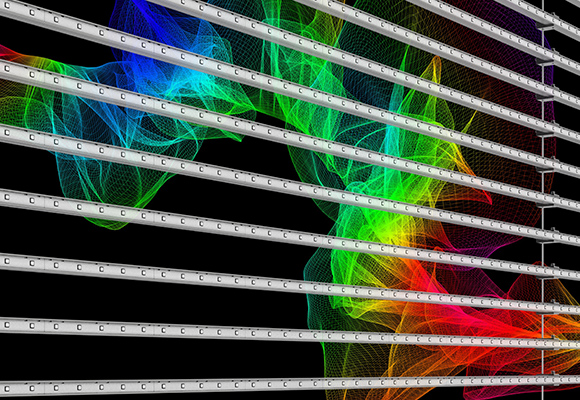

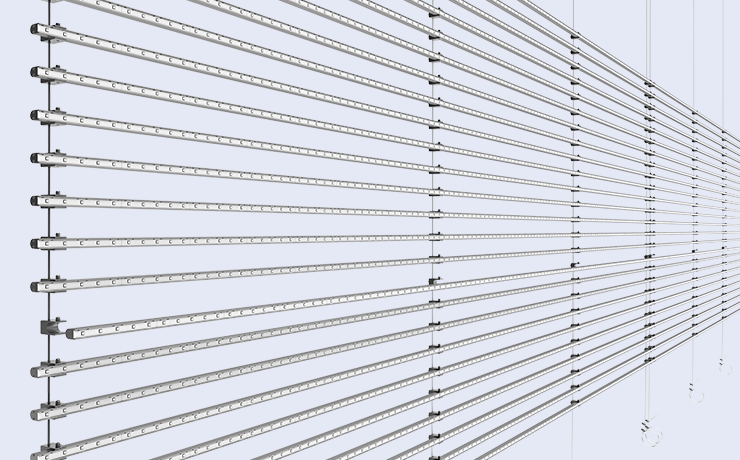

  • ROD-2 Series

    Transparent LED strip Curtain

    Key Features
    • High transparency
    • Customization
    • Waterproof Level IP65
    Specifications
    Model
    RA25
    RA31
    RA2550
    Pixel Pitch(mm)
    25
    31.25
    25 ~ 50
    Unit Size[WxHxD](mm)
    3,000X12.5X17
    3,000X12.5X17
    3,000X12.5X17
    Unit Resolution[W](pixels)
    120
    96
    120(Max)/60(Min)
    Unit Material
    Aluminum
    Aluminum
    Aluminum
    Brightness(nit)
    3,000
    2,000
    1,500
    Transparency(%)
    ≥50
    ≥60
    ≥75
    Refresh(Hz)
    ≥1920
    ≥1920
    ≥1920
    IP Rating(Front/Rear)
    IP65
    IP65
    IP65
    Power Consumption[Max./Avg.](W/㎡)
    400/130
    250/80
    200/70
    High transparency

    With Louvered screen type structure, this product is not affected by surrounding lightings while guaranteeing high transmittance.

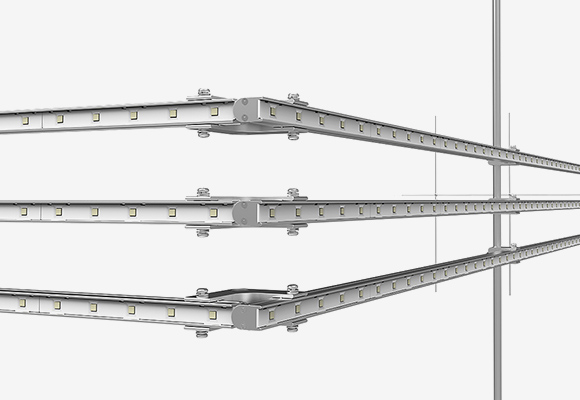

    Customization

    Length and shape of louvered screen bar can be customized to suit various structures.

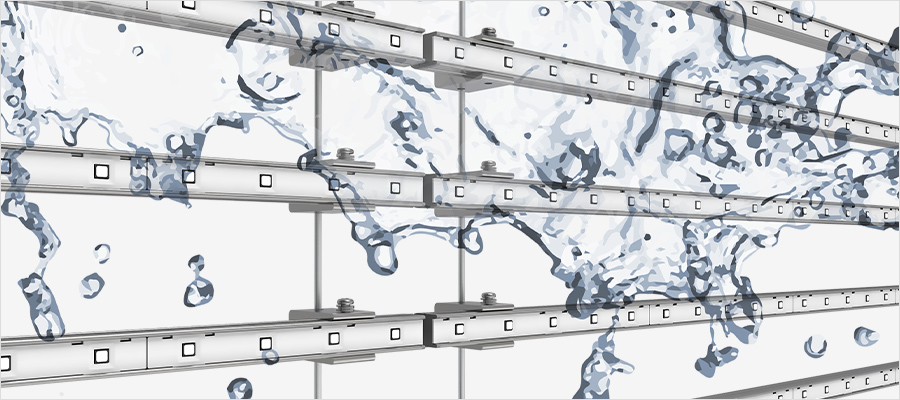

    Waterproof Leverl IP65

    This is an outdoor environment installation product with high protection ratings against water/dust, salinity and ultraviolet rays.

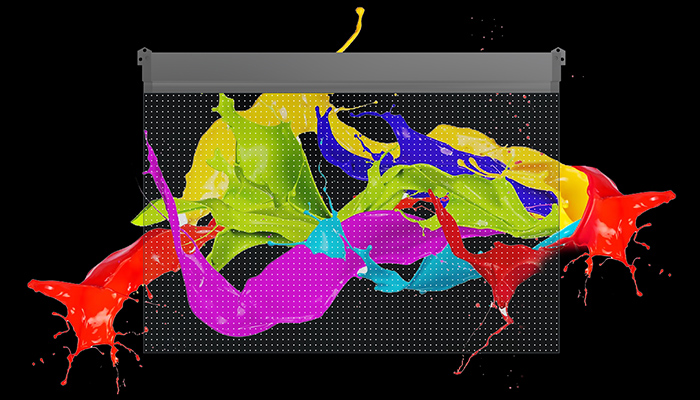

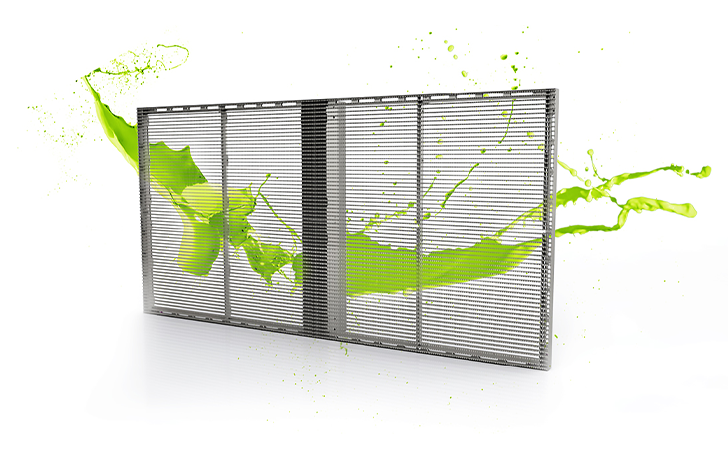

  • ROD-3 Series

    Indoor Fixed Installation Type LED Media Facade

    Key Features
    • Easy and quick installation
    • Hanging or Mounting on Window
    • Simple Structure Design
    Specifications
    Model
    RX2.6
    RX3.3
    RX3.9
    RX7.8
    RX10
    RX15
    RX20
    Pixel Pitch(mm)
    H2.61/V5.68
    H3.38/V6.94
    H3.91/V7.82
    H7.82/V7.82
    H10.42/V10.42
    H15.63/V15.63
    H20.83/V20.83
    Panel Size[WxH](mm)
    1,000X500/
    1,000X1,000
    1,000X500/
    1,000X1,000
    1,000X500/
    1,000X1,000
    1,000X500/
    1,000X1,000
    1,000X500/
    1,000X1,000
    1,000X500/
    1,000X1,000
    1,000X500/
    1,000X1,000
    Panel Resolution[W X H](pixels)
    384X88/
    384X176
    296X72/
    296X144
    256X64/
    256X128
    128X64/
    128X128
    96X48/
    96X96
    64X32/
    64X64
    48X24/
    48X48
    Panel Material
    Aluminum
    Aluminum
    Aluminum
    Aluminum
    Aluminum
    Aluminum
    Aluminum
    Brightness(nit)
    5,000~5,500
    5,000~5,500
    5,000~5,500/
    5,500~6,000
    5,000~5,500
    5,000~5,500/
    7,000~7,500
    3,000~3,500/
    7,000~7,500
    5,000~5,500
    Transparency(%)
    ≥72
    ≥78
    ≥80/≥74
    ≥80
    ≥85/≥75
    ≥90/≥85
    ≥88
    Power Consumption[Max./Avg.](W/㎡)
    800/240
    800/240
    800/240
    800/240
    800/240
    800/240
    800/240

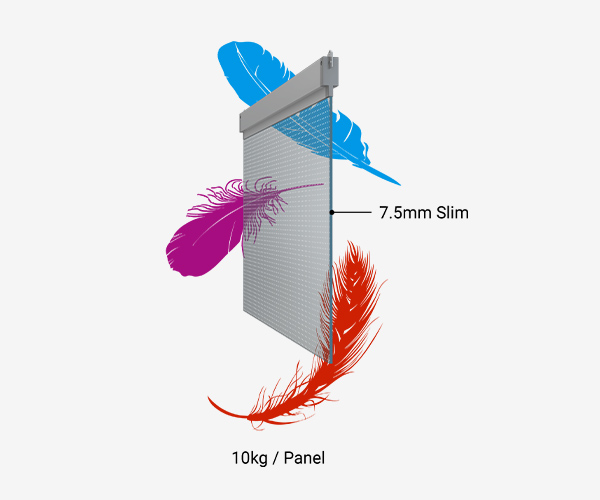

    Easy and quick installation

    With easy access to each installed part, installation time is saved.

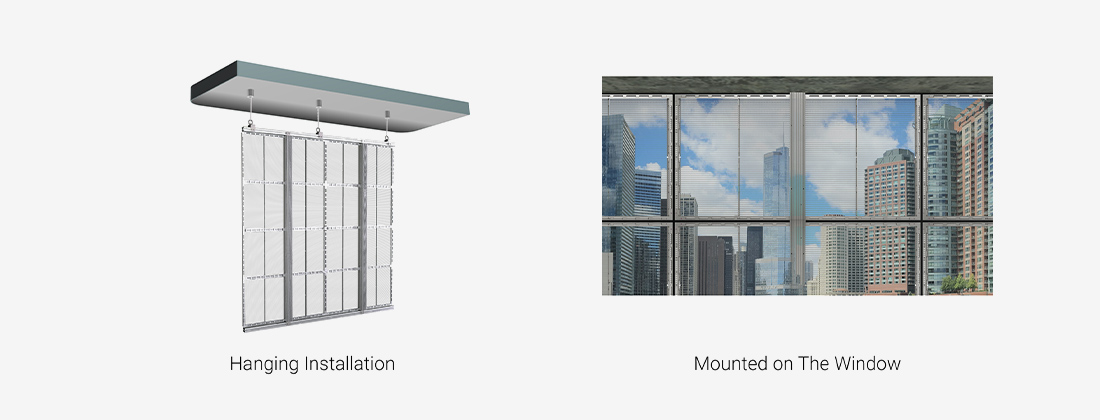

    Hanging or Mounting on Window

    The product can be hung from the top of display surface or directly adhered to installation surface.

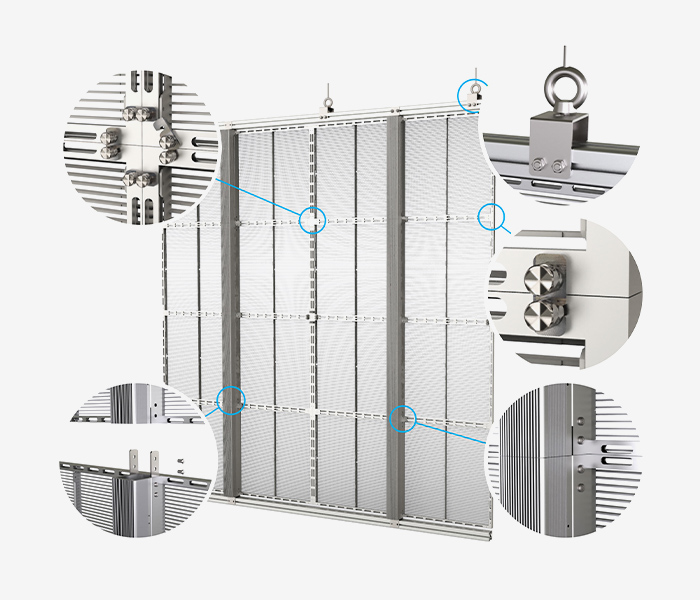

    Simple Structure Design

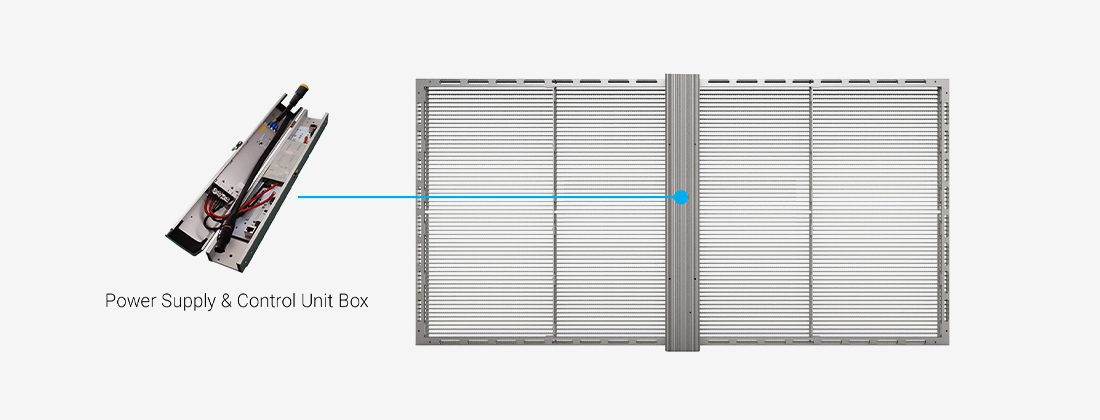

    It has a simple structure with power supply and control devices equipped within the frame.

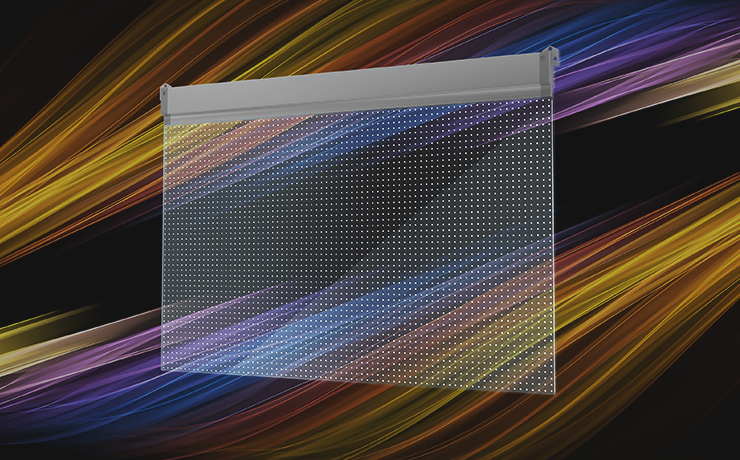

  • ROD-4 Series

    Smart Glass LED Media Facade Display

    Key Features
    • Ultra Slim & Lightweight
    • 92% Transparency
    • Smart & Easy Operation
    Specifications
    Model
    RT10
    Pixel Pitch(mm)
    H10.52/V10.42
    Panel Size[WxHxD](mm)
    800X500
    Panel Resolution[W X H](pixels)
    76X48
    Panel Material
    Anti UV PET + AL
    Brightness(nit)
    4,500~5,000
    Transparency(%)
    >92%
    Refresh(Hz)
    3840
    Power Consumption[Max./Avg.](W/㎡)
    240/100
    Ultra Slim & Lightweight

    This product is slim and light that has no burden on the weight of installation surface.

    92% Transparency

    It maintains transparency of internal and external glass plane while enabling bright and clear advertisement and promotion.

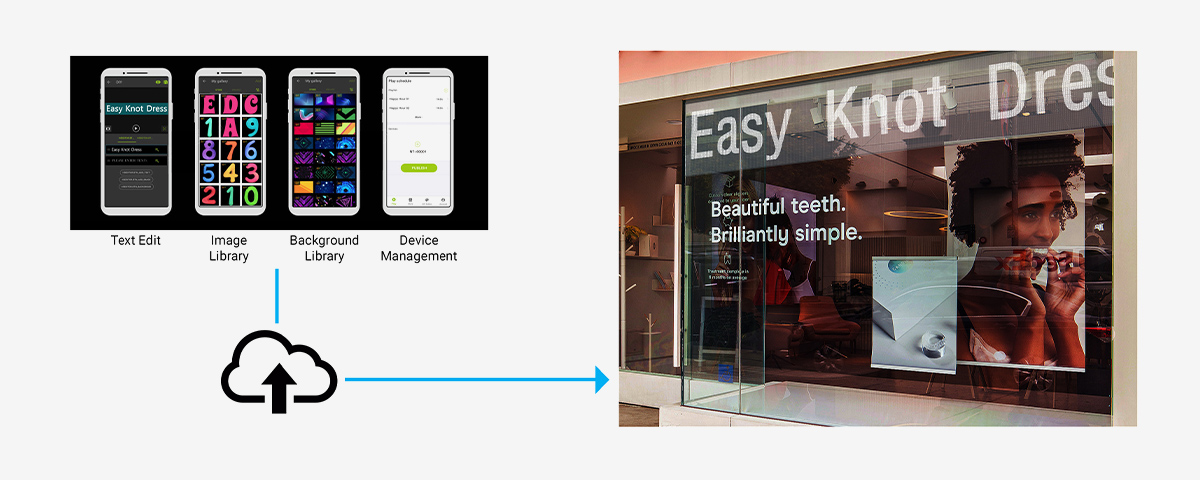

    Smart & Easy Operation

    Texts, images, backgrounds can be easily and quickly edited using smartphone app and the product can also b e conveniently managed through cloud communication.
