COB LED

Download catalogue
  • LFlex

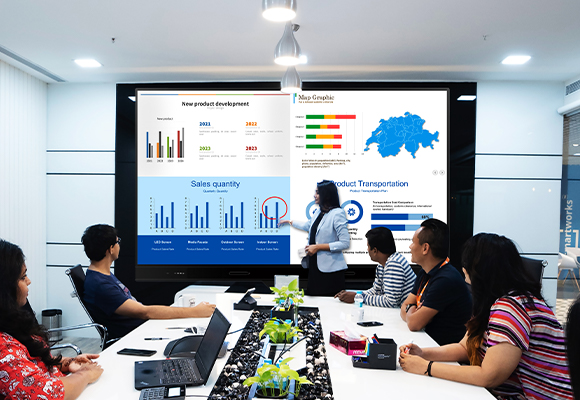

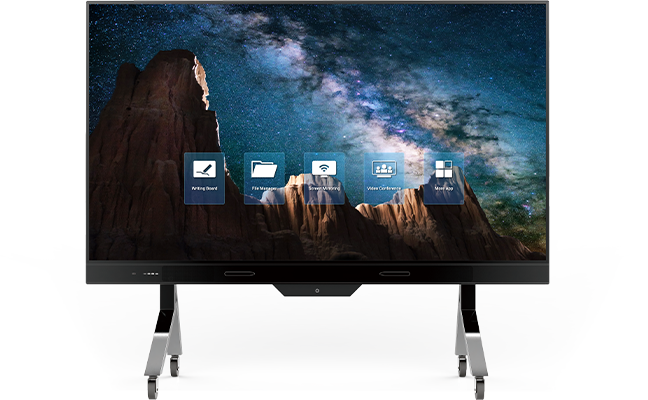

    Smart Conference System

    Key Features

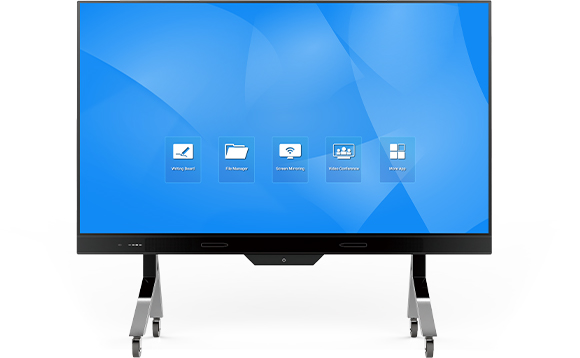

    • Intelligent Writing
    • Damage & Water Proof
    • Dual Operating System
    • Multi Screen Interaction
    • Wireless Display Sharing
    Specifications
    Model
    LF110S(720P)
    LF 110
    LF 138
    LF 165
    Pixel Pitch(mm)
    1.9
    1.2
    1.5
    1.9
    Screen Size(inch)
    110
    110
    138
    165
    Dimension(WxHxD)(mm)
    2475X1584X70
    2475X1584X70
    3083X1926X70
    3691X2268X70
    Screen Resolution[WXH](pixels)
    1280X720
    1920X1080
    1920X1080
    1920X1080
    Brightness(nit)
    450
    450
    450
    450
    Refresh(Hz)
    3900
    3960
    3180
    3900
    Viewing Angle(H/V) (˚)
    170/160
    170/160
    170/160
    170/160
    Power Consumption(Max./Avg.)(W/㎡)
    1300/450
    1400/500
    1800/600
    2400/800
    Built-in System
    Android 8.0 & Windows 10 Dual System
    Touch Technology
    Infrared Touch, 10 points
    Wireless Transmission Screen
    Windows, MAC, Android phones(software required), iphone, ipad
    Network Interface
    WLANX1, Dual-band WIFIX2 (Supports for Wireless Hotspots)
    Damage & Water Proof
    Intelligent Writing

    Multi-Touch, Dual Touch Scaling, Palm eraser

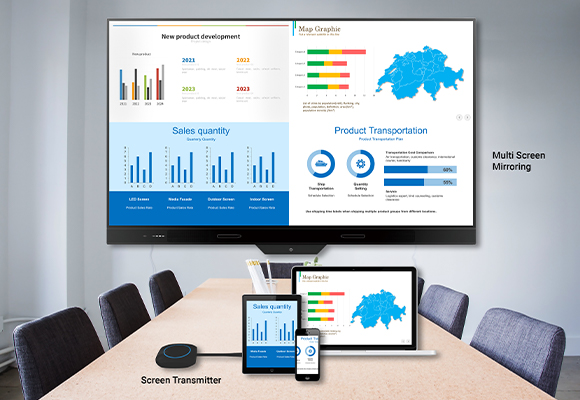

    Multi Screen Interaction
    & Wireless Display Sharing

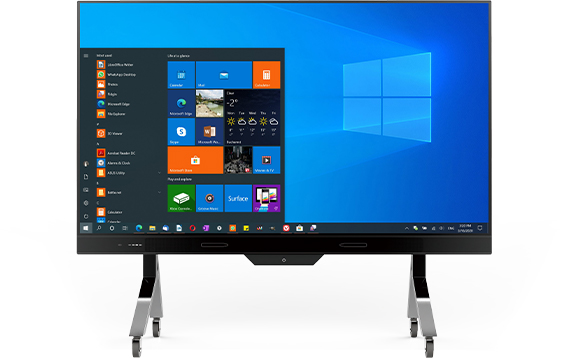

    Dual Operating System

    Two-In-One System of Windows 10 & Android 8.0

    Accesories

    Smart remote

    Screen transmitter

    Touch pen

    4K camera

    360° wirelessly microphone

    Moving bracket

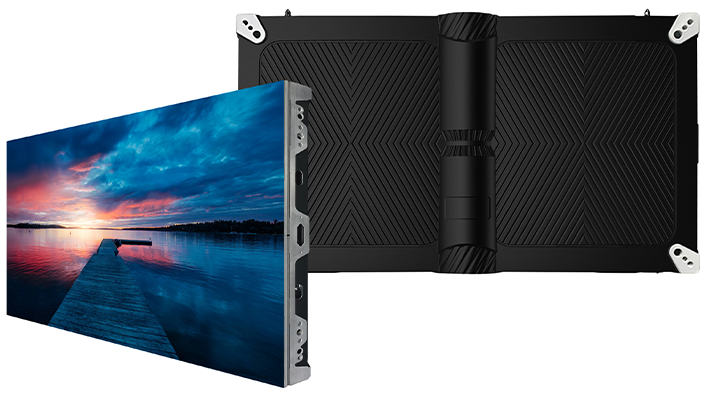

  • SCO-Wall Series

    For UHD LED Display

    Key Features
    • Damage & Water Proof
    • Low Pixel Error Rate

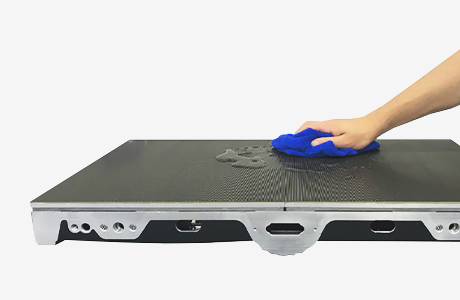

    • Easy Cleaning

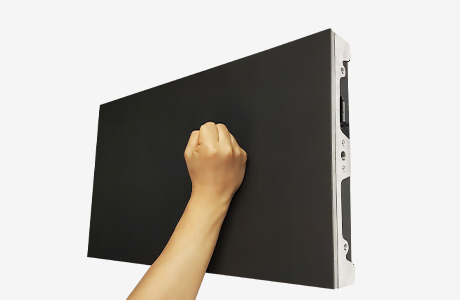

    • Anti collision
    • Front installation & Maintenance
    Specifications
    Model
    SC1.2
    SC1.5
    SC1.9
    Pixel Pitch(mm)
    1.2
    1.5
    1.9
    Cabinet Dimensions(WxHxD)(mm)
    608X342X71
    608X342X71
    608X342X71
    Cabinet Resolution[WXH](pixels)
    480X270
    384X216
    320X180
    Module Size[WXH](mm)
    304X342
    304X342
    304X342
    Brightness(nit)
    600
    600
    600
    Refresh(Hz)
    3960
    3180
    3900
    Viewing Angle(H/V) (˚)
    170/160
    170/160
    170/160
    Power Consumption(Max./Avg.)(W/㎡)
    440/146
    410/136
    420/140
    Damage & Water Proof
    Low Pixel Error Rate

    It has a lower pixel error rate compared to products with regular SMD display
