INDOOR FIXED

Download catalogue

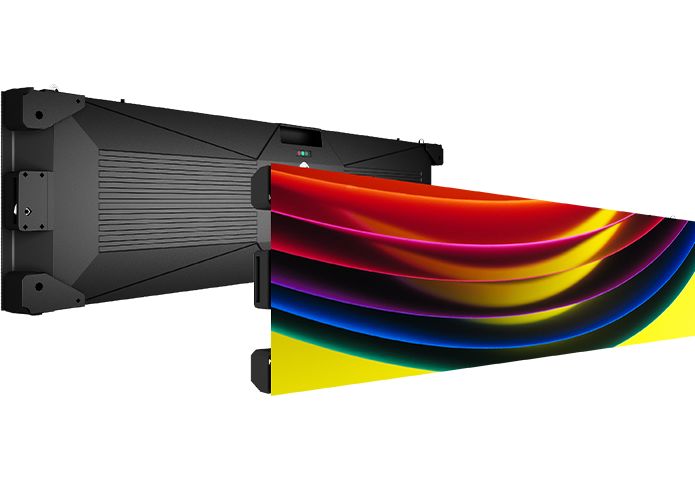

  • S-Wall Series

    LED Video Wall with Common Cathod Technology

    Key Features
    • Intelligent Power Management
      (Optional)
    • Common Cathod Technology
    • Cabinet 27 inch in 16:9 ratio
    • Highest Stability
    Specifications
    Model
    SW0.93
    SW1.25
    SW1.56
    SW1.875
    SW2.5
    Pixel Pitch(mm)
    0.93
    1.25
    1.56
    1.875
    2.5
    Cabinet Dimensions[WxHxD](mm)
    600X337.5X42
    600X337.5X42
    600X337.5X42
    600X337.5X42
    600X337.5X42
    Cabinet Resolution[WXH](pixels)
    640X360
    480X270
    384X216
    324X180
    240X135
    Module Size[WXH](mm)
    200X168.75
    200X168.75
    200X168.75
    200X168.75
    200X168.75
    Brightness(nit)
    450~2,000 Adjustable
    450~2,000 Adjustable
    450~2,000 Adjustable
    450~2,000 Adjustable
    450~2,000 Adjustable
    Refresh(Hz)
    1,920/3,840
    1,920/3,840
    1,920/3,840
    1,920/3,840
    1,920/3,840
    Viewing Angle[H/V](˚)
    160/140
    160/140
    160/140
    160/140
    160/140
    Power Consumption[Max./Avg.](W/㎡)
    450/150
    450/150
    450/150
    450/150
    450/150
    Intelligent Power Management (Optional)

    The double power system offers higher stability and prevents any shut-downs.

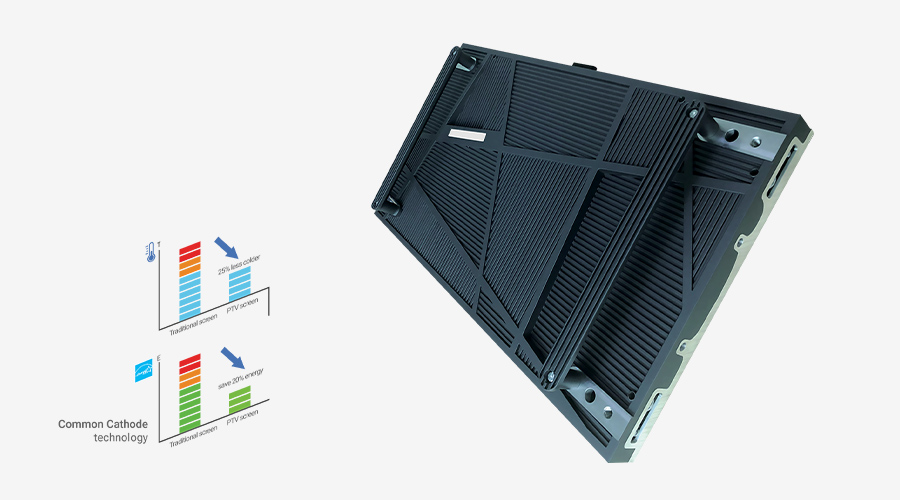

    Common Cathod Technology

    Compared to existing products, the interior temperature is maintained 25% lower and offers energy savings of 20%

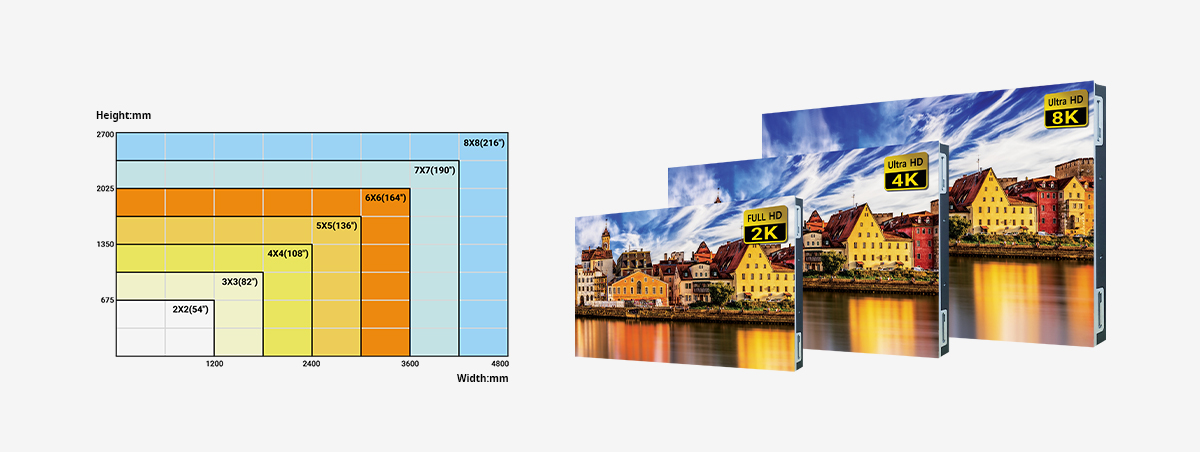

    Adopt international golden ratio 16:9

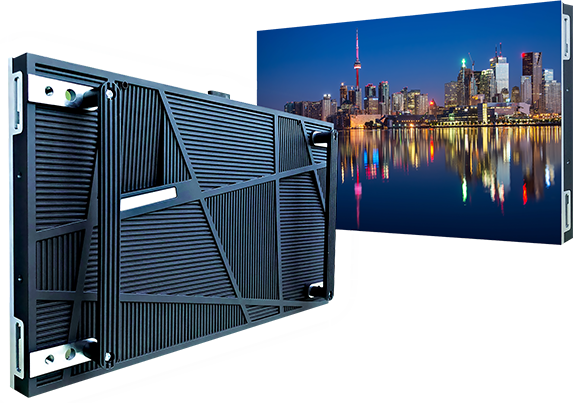

  • SVI60 Series

    High Quality LED Display

    Key Features
    • Power Backup System(Optional)
    • Multifunctional Case Design
    • Seamless splicing
    • Front & Rear Maintenance
    Specifications
    Model
    S609
    S612
    S613
    S614
    S615
    S618
    Pixel Pitch(mm)
    0.93
    1.25
    1.33
    1.44
    1.56
    1.875
    Cabinet Dimensions[WxHxD](mm)
    600X337
    .5X63
    600X337
    .5X63
    600X337
    .5X63
    600X337
    .5X63
    600X337
    .5X63
    600X337
    .5X63
    Cabinet Resolution[WXH](pixels)
    640X360
    480X270
    448X252
    416X234
    384X216
    320X180
    Module Size[WXH](mm)
    150X168.75
    200X168.75
    300X168.75
    300X168.75
    200X168.75
    300X168.75
    Brightness(nit)
    450 Adjustable
    450 Adjustable
    600 Adjustable
    600 Adjustable
    600~800 Adjustable
    600~800 Adjustable
    Refresh(Hz)
    1,920/3,840
    1,920/3,840
    1,920/3,840
    1,920/3,840
    1,920/3,840
    1,920/3,840
    Viewing Angle[H/V](˚)
    160/140
    160/140
    160/140
    160/140
    160/140
    160/140
    Power Consumption[Max./Avg.](W/㎡)
    800/200
    800/200
    800/200
    800/200
    800/200
    800/200

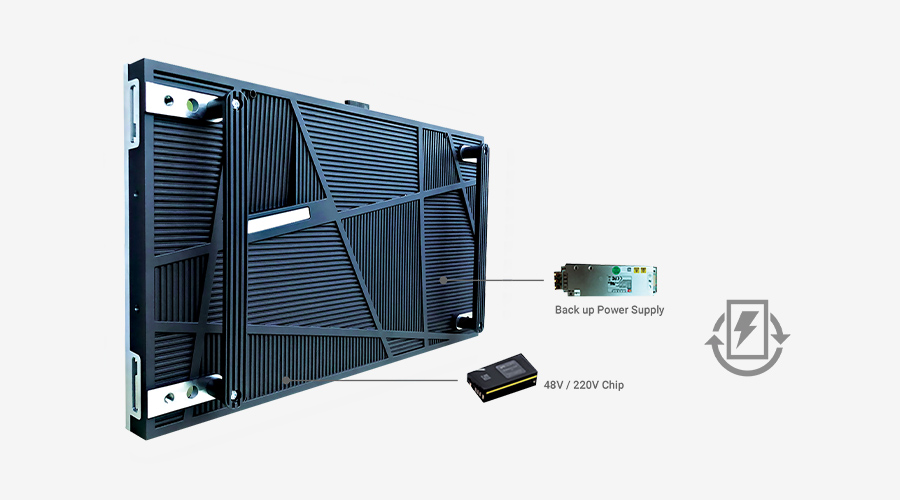

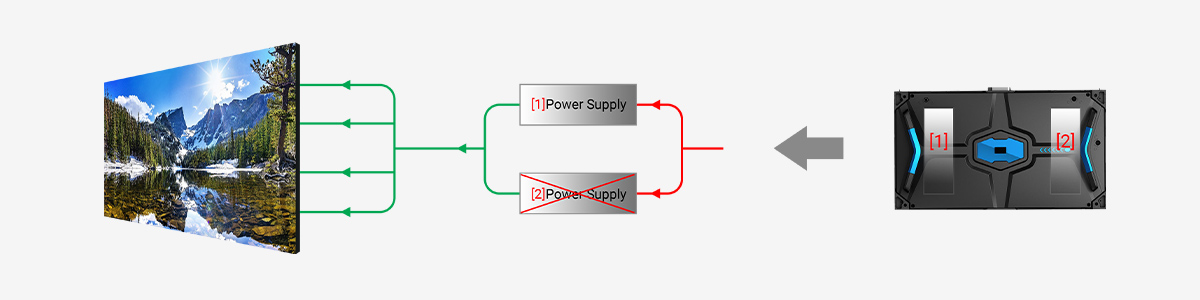

    Power Backup System (Optional)

    The double power system offers higher stability in operation.

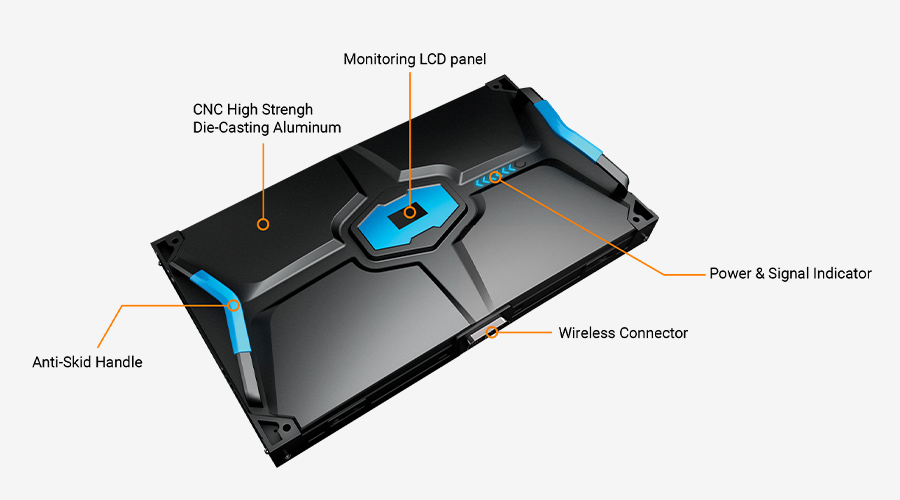

    Multifunctional Case Design
    Adopt international golden ratio 16:9
  • SVI 1000 Series

    Indoor Retail Shop LED Display

    Key Features
    • Easy Installation
    • Support 90° Installation
    • Full Front Maintenance
    • Slim & Light Weight Indoor LED Display
    Specifications
    Model
    S29
    S39
    Pixel Pitch(mm)
    2.97
    3.91
    Cabinet Dimensions[WxHxD](mm)
    1000X250X51
    1000X250X51
    Cabinet Resolution[WXH](pixels)
    336X84
    256X64
    Module Size[WXH](mm)
    250X250
    250X250
    Brightness(nit)
    700~1000 Adjustable
    700~1000 Adjustable
    Refresh(Hz)
    1,920/3,840
    1,920/3,840
    Viewing Angle[H/V](˚)
    160/140
    160/140
    Power Consumption[Max./Avg.](W/㎡)
    700/350
    700/350

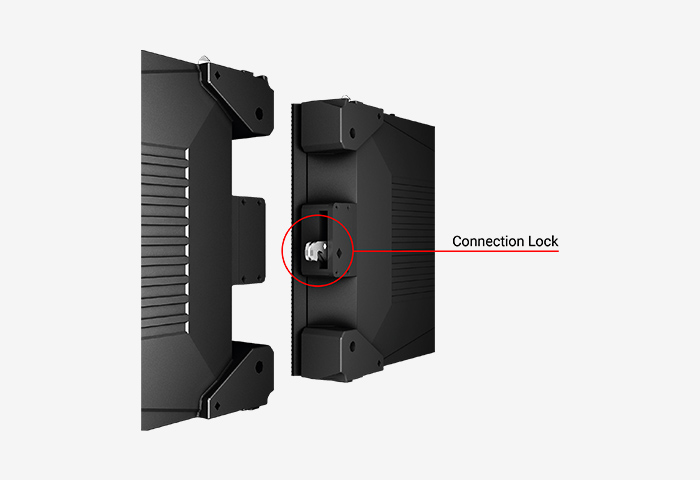

    Easy Installation

    This is a connection lock type product that cuts down the installation time and makes things easier.

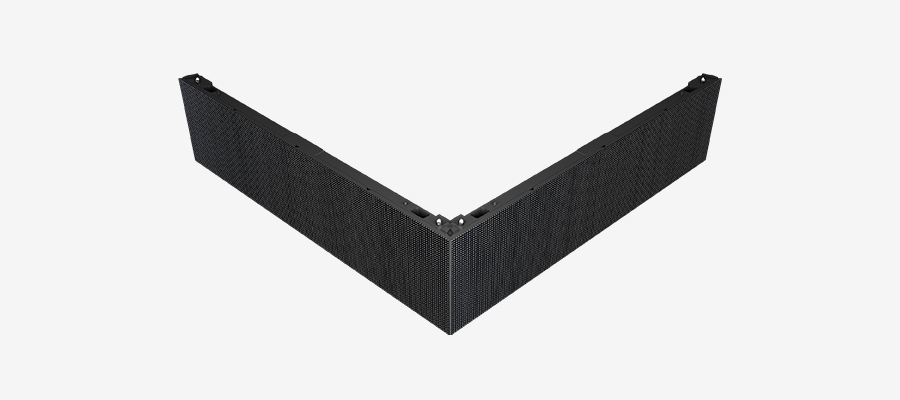

    Support 90° Installation

    The product can be installed on walls that are perpendicular, as well as on columns.

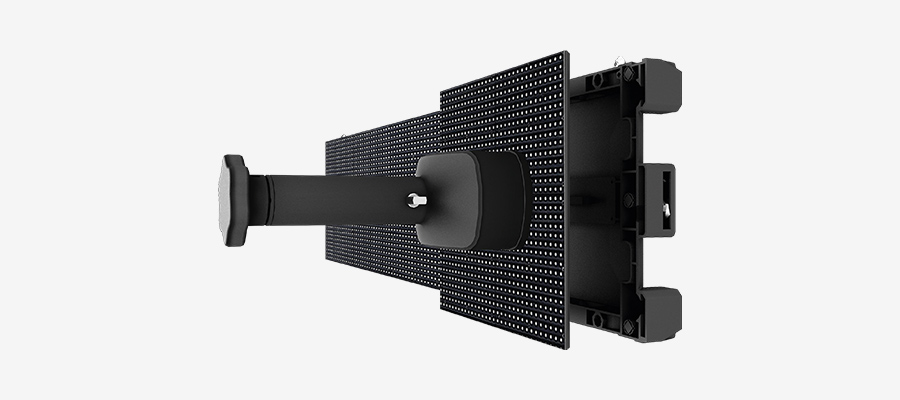

    Full Front Maintenance

    The type offers fast and efficient maintenance on all sides. All interior parts on the back of the module can be accessed for maintenance.

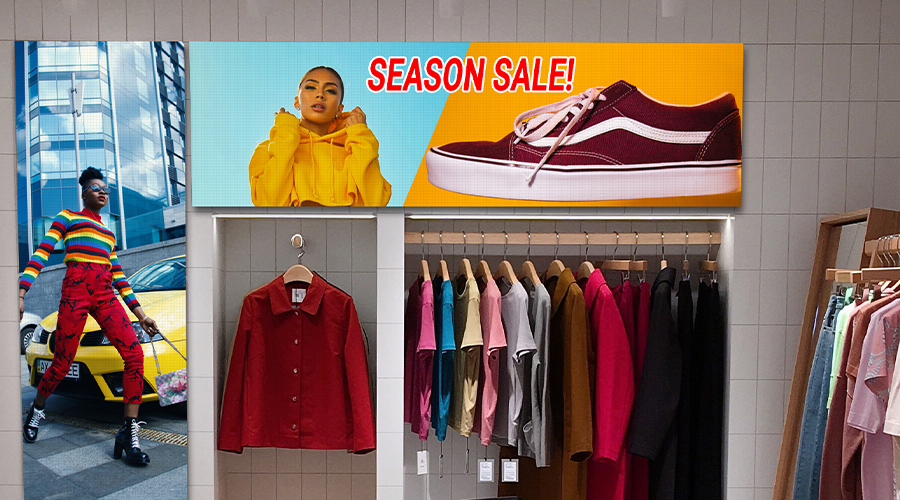

    Slim & Light Weight Indoor LED Display

    The slim and light-weight product can be easily installed on the wall or ceiling of a store, serving as a frame for video ads.
